CNC hole drilling machine:

Creating holes and recesses in precast hollow-core slabs has traditionally been a time-consuming and labor-intensive process. To streamline this task, Concore has developed an advanced CNC hole-drilling machine that combines automation with precision.

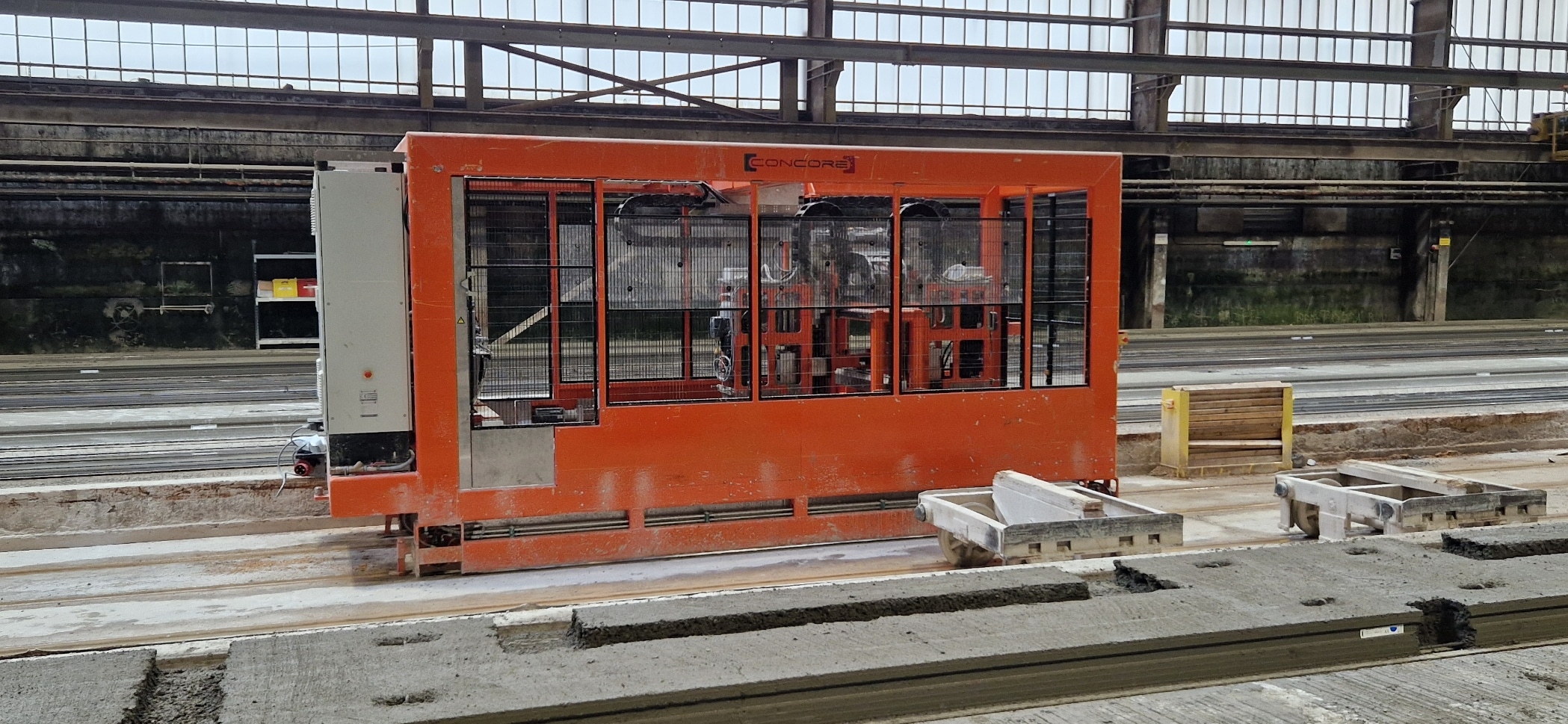

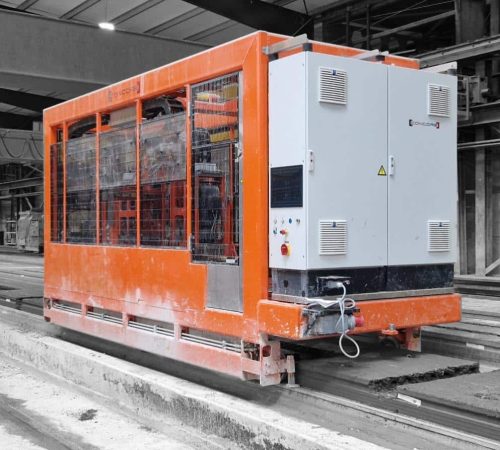

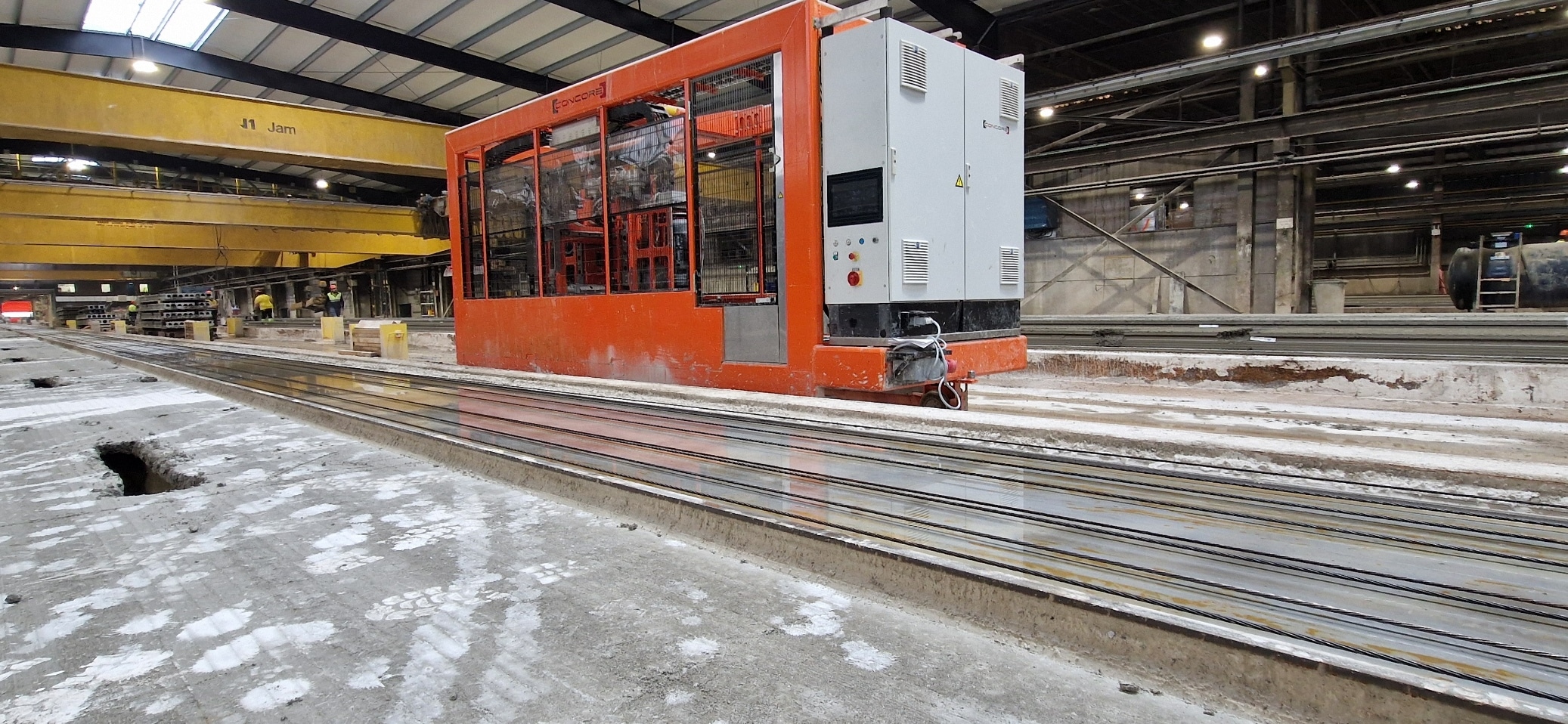

The CNC hole-drilling machine is a fully automatic system designed to create holes of various diameters in hollow-core slabs. Depending on the required hole size, the machine can be applied to both green (fresh) and hardened concrete, offering flexibility across different production stages.

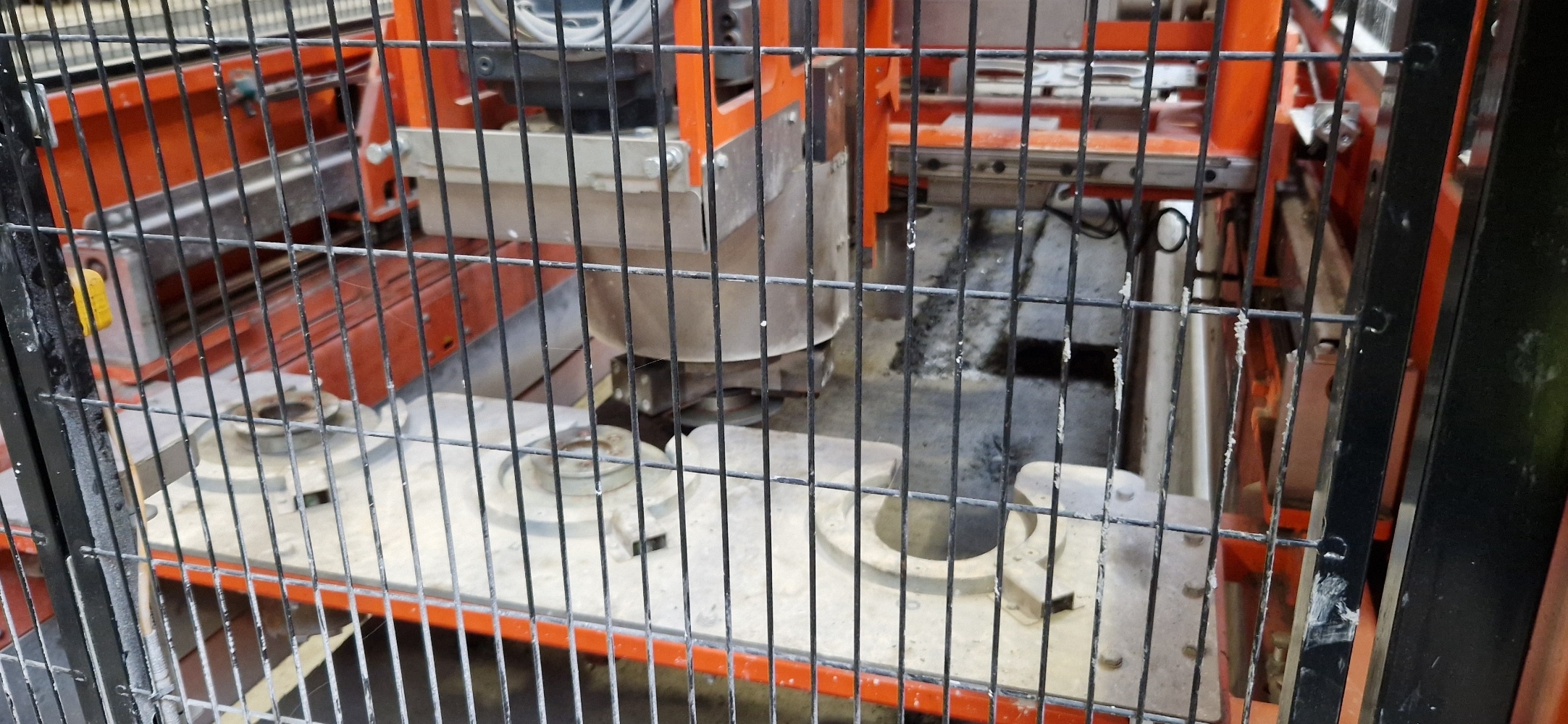

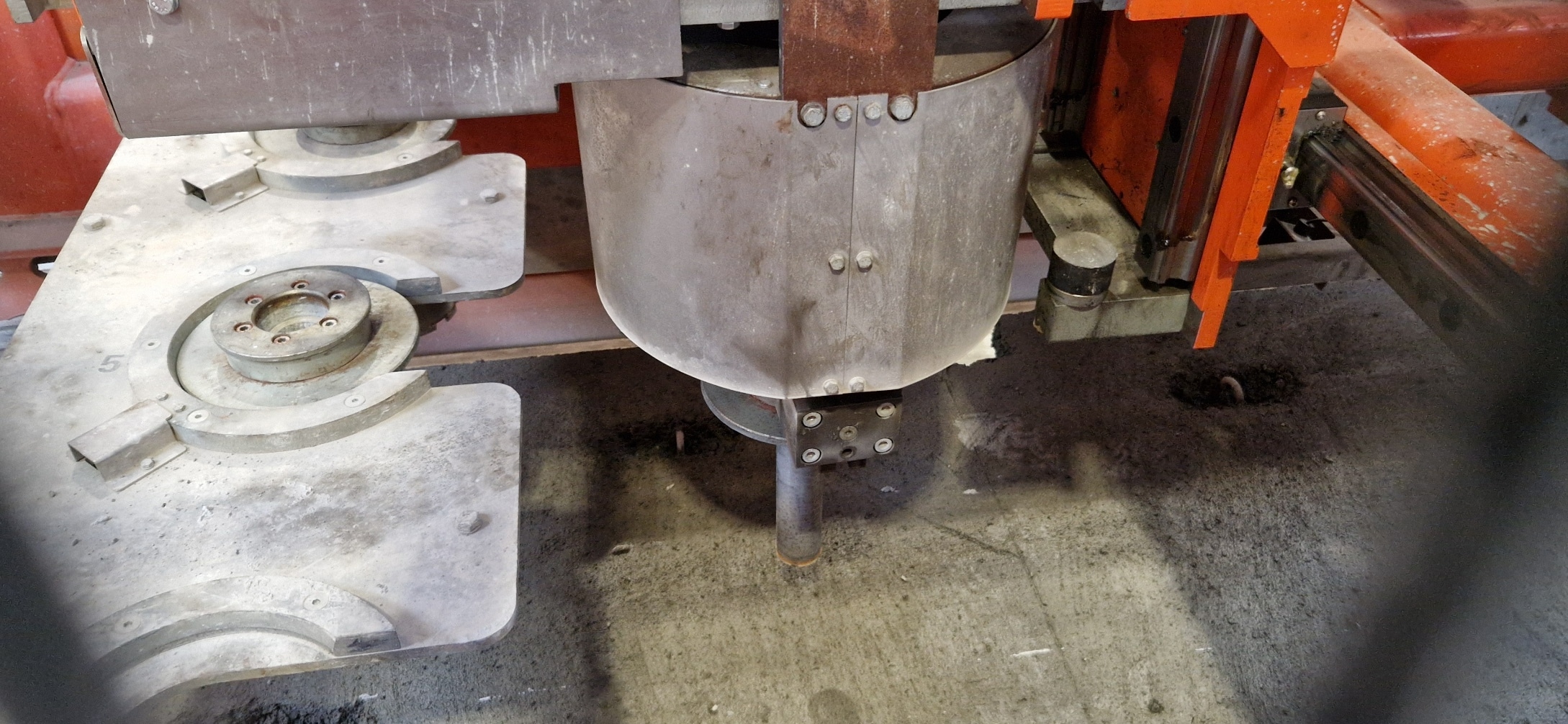

Equipped with two servo-controlled drill heads, each featuring an automatic tool change system, the machine can handle up to six different drill diameters in one setup. This not only saves time but also ensures consistent quality and accuracy.

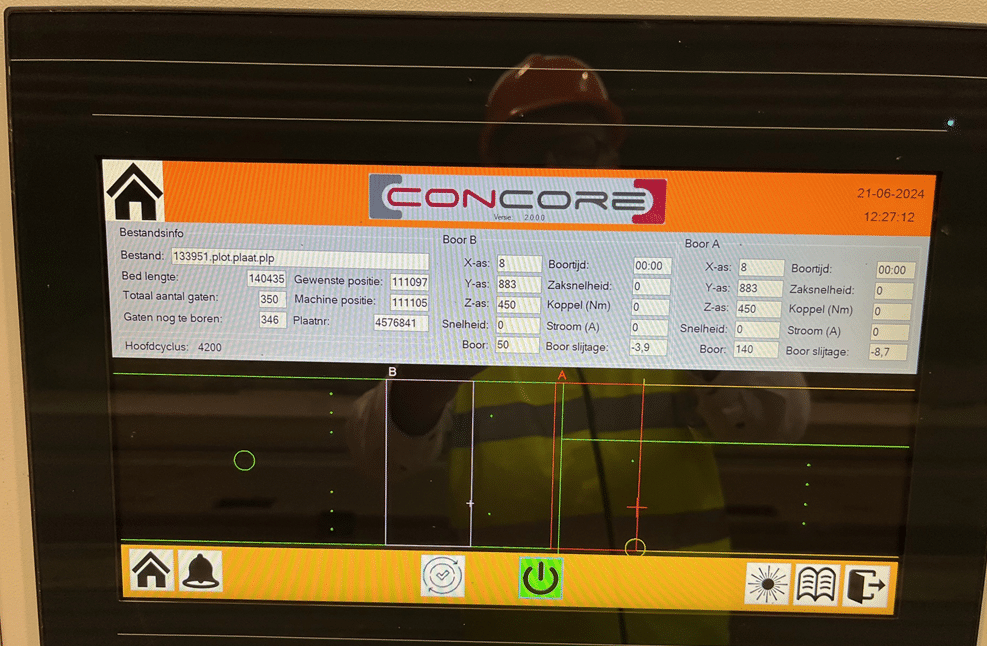

An important feature is the integration with the production workflow: the machine reads its data directly from the slab’s casting plan. This makes it possible to automatically position and drill holes according to the project’s requirements, without manual programming.

With its robust design, high level of automation, and seamless integration into the planning system, the CNC hole-drilling machine reduces manual labor, increases efficiency, and helps precast producers achieve more reliable and cost-effective results.
